Kop10773 Ko Propo 2024 Ex-next Ldt Black Sp W/kr-420xt (short) Triple Receiver (limited Edition)

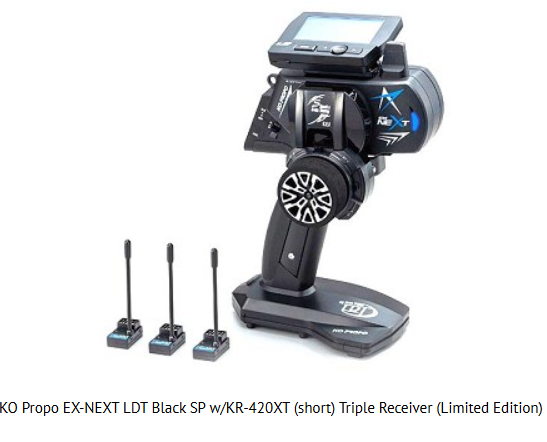

KOP10773 KO Propo 2024 EX-NEXT LDT Black SP w/KR-420XT (short) Triple Receiver (Limited Edition)
New idea! Equipped with Lay Down Trigger!

A new idea to lay down the operation axis of the trigger by 90 degrees. This sensation that you can squeeze and press naturally with your fingertips. Ergonomic design that does not disturb the movement of the fingers realizes a seamless and highly linear operation feeling over the entire stroke. Makes accelerator work and braking smoother and more enjoyable. "LDT" is born, which seems to improve Dora Tech for both one and two ranks. This appearance, which is also focused on the quality of operation feeling, takes you to a new dimension. Also, this is adjustable for using by children who has small hands * There are limit by Hand size.

Charge battery by connecting to stand

Balance terminal extension cable is included. You can charge the battery without removing the battery from the transmitter.

*This compatible connecttor is XH (3 pins).* Compatible Battery size (Maximum):88x18x32cm

Equipped with a new standard "XT" that achieves the fastest communication speed in the industry?.

You can choose and use from "XT advanced mode" which is the world record response for one way communication and "XT telemetry mode" which is compatible for Telemetry ( 2 ways communication).

XT Advanced Mode

An all new control software and radio communication software of the EX-NEXT has been developed. World record communication response and High resolution control are installed.
"XT Advanced mode" that is the highest speed in EX-NEXT is about 3 times the speed of the EX-RR.
The performance far exceeds the conventional high-speed communication.

High-speed communication in the XT advanced mode improves the information density that will be sent to the receivers.
You will feel a "Fine and smooth maneuvering feeling" by unprecedented high-definition and high-resolution control when operating.

XT Telemetry mode

EX-NEXT supports "XT Telemetry mode" that uses 2-way communication. When "4S series servos" that support serial compatible are connected to the B/S port in the new receiver KR-420XT, you can use "REAL TIME ICS". So, you can easily change parameters of servos from the transmitter without accessing the car directly. Setting your car with more freedom and more detail without compromise.

Also, even using the XT Telemetry mode that is 2-way communication, the High-speed response is still faster thanthe EX-RR.

Supported HCS.

EX-NEXT & KR-420XT support the use of HCS that was adopted from the RSx3, BSx3 series. Until now, it was necessary to change the receiver mode using the settingdevice, but with EX-NEXT this can be changed from the transmitter for each channel. HCS compatible servos are automatically change to HCS mode when the received signal is HCS. If you want use HCS, please connect servos to 1-4ch ofthe KR-420XT.

Compatible Servo: RSx3 / BSx3 / RSx4S / BSx4S Series

NORMAL mode

You can use different kinds of servos by changing the response mode to "Normal mode". So, you can use most current servos and ESC with EX-NEXT.

In this case, please connect to 1-4ch of the receiver.

*If you change the response mode of EX-NEXT from NORMAL to XT advanced mode in the radio settings, the maximum movement degrees of servos are limit to maximum about 42 degrees and will change. So, if you use NORMAL mode were commended setting to XT telemetry mode in the radio setting. In case of using an ESC, there is no chance of using over a travel limit, so there is no problem using with XT advanced mode.

Includes Serial compatible receiver KR-420XT

Dimensions:256.0×170.0×127.5mm(Does not include protrusions)
Weight: 563g(battery not included )
Power supply: AAA size dry battery x4,
       Ni-MH battery x4,
       Li-Fe battery (2cell 6.6V)*,
       Li-Po battery (2cell 7.4V)*,
       (Batteries are sold separately.)
Current: 200mA or less
Channel: PWM 4ch / Serial 8ID
Maximum setting ID number of serial are different by each products.
Frequency: 2.4GHz
Radio Mode: XT
Model memory 50
Compatible receiver: KR-420XT, MINI-Z EVO 2 receiver unit for KO compatible transmitter, MINI-Z
EVO Receiver Unit EX-NEXT MC-8
*Do not charge the battery with the power on.

*Can not use LCD Xpansion unit EXP-104 series.
*Can not use FHSS or DSSS receiver. (KR-418FH KR-415FHD,KR-210S etc)
*The product photos on this site are prototypes, which may be different to production models.
